The DSP Remote Monitor is a new tool that SEMAPI offers to the industrial market as a result of 30 years of experience in the techniques of control and vibration analysis.

This new equipment, capable of monitoring rotating machinery or structures, has the ability to measure, record and analyze values scalar spectra and waveform. Being
able to calculate these measurements in extremely short time and so in all channels simultaneously.

The versatility of its configuration allows the operator to define, each point, all the measurements and thevariables that it deems appropriate measured and recorded at different time intervals between points or measurements.

The multiplicity of channels is simply done and optimized by the computer.
Each monitoring module has 6 (six) accelerometer channels plus 4 AC inputs and 2 CC inputs for additional registration process variables, adding to this an independent entry of RPM.

The system can handle in one application up to 192 different channels, able to process between these points more than 1,200 measurement simultaneously, using the same analysis software and a terminal.



Overview:

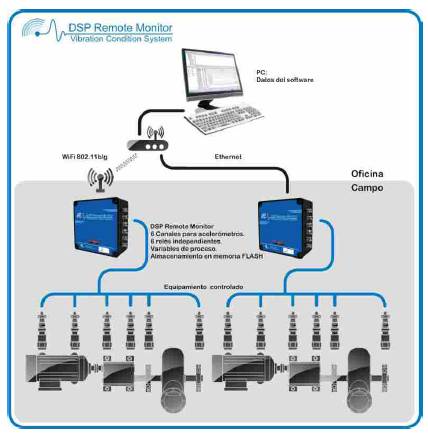

DSP Team Remote Monitor allows monitoring of 12 channels or points for each meter module, these modules have USB and Ethernet connection.
The channels have relay outputs to activate instant alerts if the thresholds set by software are overcome.

The measurements that are scheduled for points can be scalar or spectral, variables are configurable in each measurement and characteristics of each measurement are extremely flexible.

The routines of measuring points of the machine setcan be programmed on automatic routines follow-up with periods of different times between measure and record of the measurement.

The monitoring system is carried out under the configuration and Machinery DSP monitoring Control software, which will be responsible for defining the architecture of the system monitoring and tracking of data as On Line.

The software has a configuration diagram plant, sector, equipment and point measurement. After you set the parameters of the vibration monitoring routines, the system will record the history of the machine, leaving at the user hands all failure
analysis tools and tracking anomalies in on line mode.
