Mounting: DIN rail
High perfomance and low-cost
Output: 4-20 mA
Double relay outputs (danger/emergency)
Sensor fault indicator led
BNC output for spectrum analyzer
On line vibration level indicator
Parallel connection for different variables
Easy to install
General Specifications:
Both Vibration or temperature are measurable with the MC-5 monitor, its 4-20mA output works as a signal transmitter for PLC’s or DCS. Its additional relay outputs makes the MC-5 a low-cost, as well as an easy to operate monitor because of its simple configuration and its front display indicator level and relay condition indicator leds.
Alarm level settings:
The thresholds are adjustable by means of dual alarm settings (danger/emergency) as the measurement is made. If trip levels are exceeded, two independent relays output are activated (in order to trip an audible or light alarm), at the same time a contactor is activated as a second protection.
Output signals:
Two output signal: one BNC connector for sensor´s measurements collection through a FFT analyzer or data collector, and one additional output, suited on the front, for another MC-5 module (to take some other variable measurements from the same sensor)
3 Modules configuration One DUAL type |
 |
2 Modules configuration One multipurpose type |
 |
Specifications
Mesurement module MC-5:
Input: Accelerometer 50 / 100 / 500 mV/g
Frequency range: Acceleration 1Hz a 10.000 Hz - Velocity 1Hz a 1000Hz
Accuracy: 1%
Power supply: 24V
Output signal: 4-20 mA (Scale proportional)
Temperature range: -32°C a + 80°C
Relative humidity: 0 - 95 % (with no condensation)
Housing: ABS. Hermetic.
Measurements variables: Acceleration, Velocity and Temperature.
Type: RMS
Signal output: BNC type for FFT analyzer or data collector
Mounting: DIN rail
Vibration sensors for MC-5:
Multipurpose sensor:
Sensitivity: +10% 100 mV/g
Frequency response: +3 dB 0,5-15000 Hz +10% 2,0-10000 Hz
Dynamic range: +50 g, peak
Operating temperature range: -50 to 121° C
Maximum shock: 5000 g, peak
Weight: 90 gms
Case material: 316L Stainless steel
Mounting: 1/4-28 1/4-28
Output connector: 2 Pin MIL-C-5015
Dual sensor (vibration/temperature):
Sensitivity: +10% 100 mV/g
Frequency response: +/-3 dB 0,5-15000 Hz +/-10% 2,0-10000 Hz
Dynamic range: +50 g, peak
Output temperature: 10 mV/°C
Operating temperature range: -50 to 121° C
Maximum shock: 5000 g, peak
Weight: 90 gms
Case material: 316L Stainless steel
Mounting: 1/4-28 1/4-28
Output connector: 2 Pin MIL-C-5015

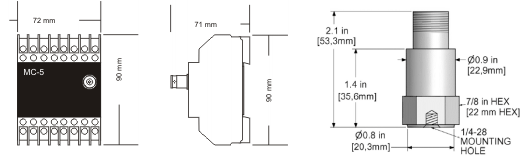

Dimensions

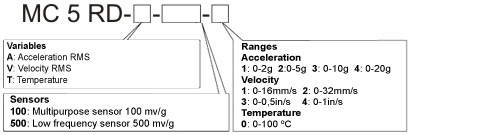

Available configurations:
