Standard Side Accelerometers
| Standard Side Accelerometers 100 mV/g | |||

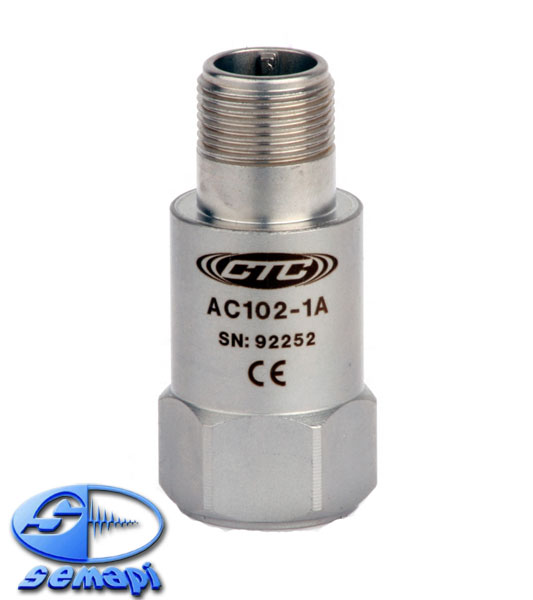

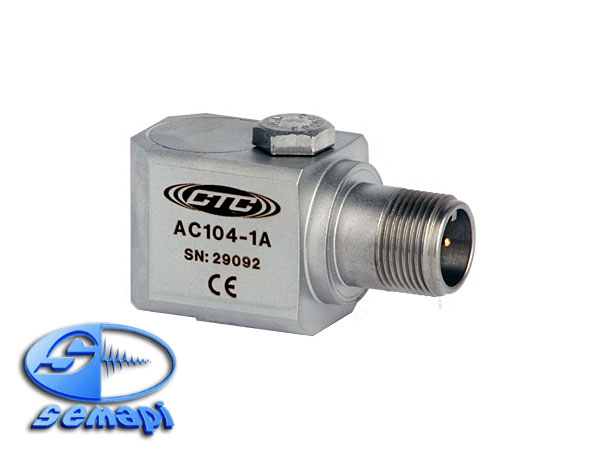

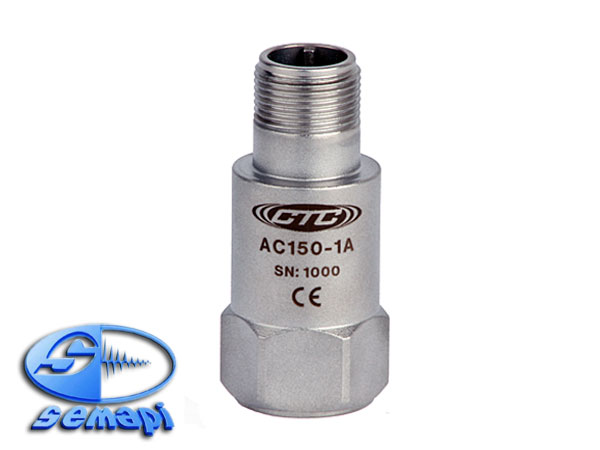

| Models | AC102 | AC150 | AC104 |
 |
 |
 |
|
| Description | Multi-Purpose Accelerometer, Top Exit Connector / Cable, 100 mV/g | Low Cost Accelerometer, Top Exit Connector / Cable, 100 mV/g | Multi-Purpose Accelerometer, Side Exit Connector / Cable, 100 mV/g |
| Sensitivity | 100 mV/g | 100 mV/g | 100 mV/g |
| Frequency Response (±3dB) | 30-900,000 CPM | 60-600,000 CPM | 30-600,000 CPM |
| Dynamic Range | ± 50 g, peak | ± 50 g, peak | ± 50 g, peak |
| Power Requirements Voltage Source | 18-30 VDC | 18-30 VDC | 18-30 VDC |
| Temperature Range | -58 to 250°F | -58 to 250°F | -58 to 250°F |
| Case Material | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel |
| Connector | 2 Pin MIL-C-5015 | 2 Pin MIL-C-5015 | 2 Pin MIL-C-5015 |
| Max Temp | 121°C | 121°C | 121°C |
 |
|
|
|
